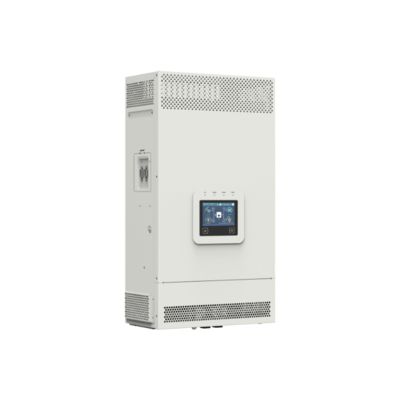

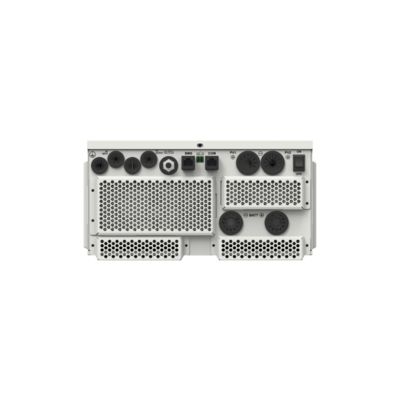

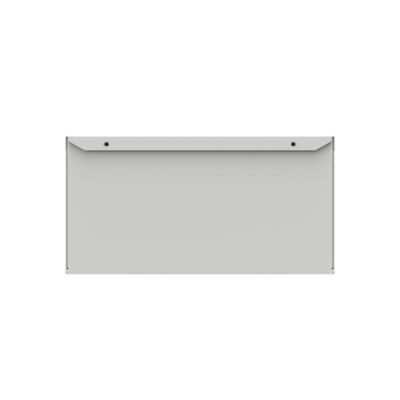

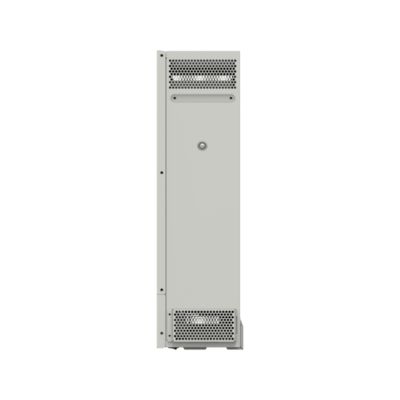

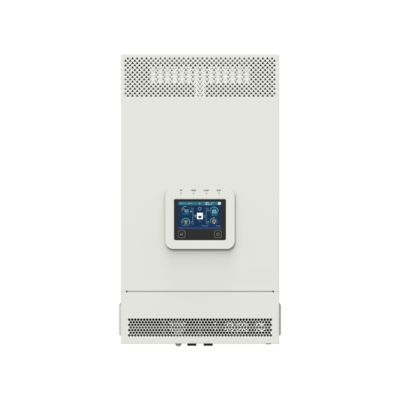

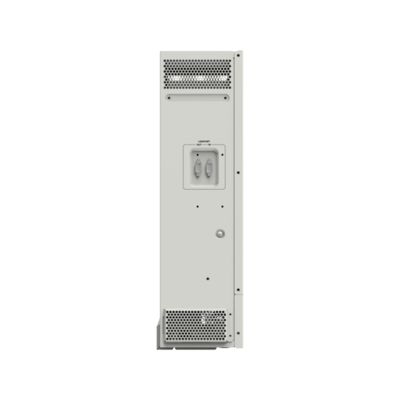

The brand new Unicorn Pro series is an inverter/charger that supports utility charging,oil generator charging,solar charging,dualoutput from utility or inverter,multiple operating modes,and smart energy management.It supports parallel operation for multipleunits in single phase or three phase.The inverter with power of 3.5KW and 5.5KW perfectly suits residential applications,schools,
health facilities,government buildings,and areas where the electricity is unstable.
Specification
|
Model
|
UCP3542-0650P20/C
|
|
Utility input
|
|
Utility Input Voltage
|
176VAC to 264VAC (Default)
90VAC to 285VAC (Configurable)
|
|
Utility Input Frequency
|
45Hz to 65Hz
|
|
Maximum Utility Charging Current
|
60A
|
|
Switch Response Time
|
Switch Response Time – Inverter to Utility: 10ms
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
|
|
Inverter output
|
|
Inverter Rated Power (@30℃)
|
3500W
|
|
3-second Transient Surge Output Power
|
7000W
|
|
Inverter Output Voltage
|
220/230VAC±3%
|
|
Inverter Frequency
|
50/60Hz±0.2%
|
|
Output Voltage Waveform
|
Pure sine wave
|
|
Load Power Factor
|
0.2－1(VA ≤ Rated output power)
|
|
THDu (Total Harmonic Voltage Distortion)
|
≤3%
|
|
Maximum Load Efficiency
|
92%
|
|
Maximum Inverter Efficiency
|
94%
|
|
Maximum Main Load
|
3500W
|
|
Maximum Second Load
|
3500W
|
|
Main Output Cut-Off Voltage
|
Equal to “Under Voltage Warning Voltage”
|
|
Second Output Cut-Off Voltage
|
Equal to “Low Voltage Disconnect Voltage”
|
|
Dual Output Recovery Voltage
|
Equal to “Low Voltage Reconnect Voltage”
|
|
Solar controller
|
|
PV Maximum Open-circuit Voltage
|
500V (At minimum operating environment temperature)
440V (At 25℃)
|
|
MPPT Voltage Range
|
85V to 450V
|
|
Number of MPPTs
|
1
|
|
PV Maximum Input Current
|
20A
|
|
PV Maximum Short-circuit Current
|
22A
|
|
PV Maximum Input Power
|
4200W
|
|
PV Maximum Charging Current
|
60A
|
|
MPPT Maximum efficiency
|
≥99.5%
|
|
Battery
|
|
Battery Rated Voltage
|
48VDC
|
|
Battery Work Voltage Range
|
40.8VDC to 64.0VDC
|
|
Battery Maximum Charging Current
|
60A
|
|
Others
|
|
No-load Losses
|
≤0.8A
|
|
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input
|
|
Standby Current
|
≤0.6A
|
|
Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input
|
|
Communication with BMS
|
RS485
|
|
Communication with Portal
|
RS485
|
|
Parallel Function
|
Yes, 12 units in standard, 16 units at most
|
|
Work Temperature Range
|
-20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)
|
|
Storage Temperature Range
|
-25℃ to +60℃
|
|
Enclosure
|
IP20 (With ANTI-DUST KIT)
|
|
Relative Humidity
|
< 95% (N.C.)
|
|
Altitude
|
<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
|
|
Certifications and Standards
|
IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368
|
|
Mechanical parameters
|
|
Dimension (Length x Width x Height)
|
534mm × 300mm × 163mm
|
|
Mounting size (Length x Width)
|
512mm × 245mm
|
|
Mounting hole size
|
Φ9mm/Φ10mm
|
|
Net Weight
|
12.7Kg
|
