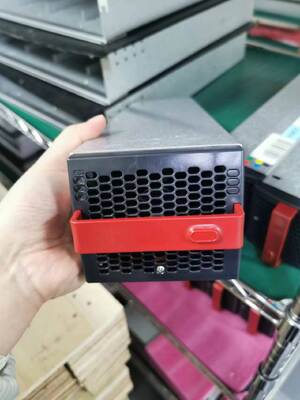

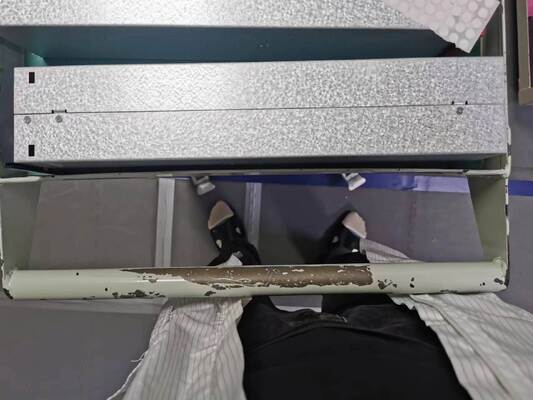

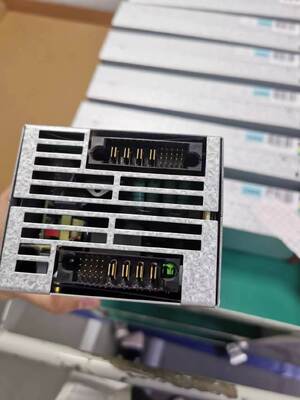

Name: CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: Sierra 25 - 110/230-277
Price: 1 USD
Availability: InStock

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010

MOQ

1 USD

harga

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Merek: CE+T

Nomor model: Sierra 25 - 110/230-277

Nama Produk: Konverter /UPS

Bagian No.: T721D50201

Tegangan keluaran AC: 110Vdc

Data Masukan AC: 230 Vac / 11.8 A, 240 Vac / 11.0 A dan 277 Vac / 9.5 A

Data input DC: 110 VDC (90 - 150 VDC)

Efisiensi: DC/AC: > 93,7%

Efisiensi: AC/AC: > 96% / > 93,7% / > 93,7%

GW: 6KG

Informasi dasar

Tempat asal: CN

Nama merek: CET

Sertifikasi: CE UL

Nomor model: Sierra 25 - 110/230-277

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: karton kayu

Waktu pengiriman: 6-8 minggu

Menyediakan kemampuan: 500 set / bulan

Galeri

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010

Deskripsi Produk

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010 0

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010

Description:

Sierra 25 – 48/230-277 can be used as a UPS to secure AC & DC loads and charge the batteries.

The 3 all bidirectional ports allow for multiple innovative applications such as grid reinjection, peak shavings,

phase balancing or energy sharing through DC distribution, among many others.

By using several modules, we can offer solutions for three-phase (3x400Vac + N) infrastructures.

The module can be integrated in small or large cabinets to reach up to 2 MW.

With our new Inview S monitoring, you can benefit from a unique experience.

The total output power per module is 2.7 kW, limited to 2.4 kW for each AC or DC port.

Key Features:

Secure AC & DC loads;
Many innovative applications;
Compatible with Inview S;
Modularity: from 2.7 kW to 2 MW;
From small to large systems.

Versions:

4 modules can be integrated into 2U high shelves to provide up to 10.8 kW (AC + DC)

Parameters:

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010 2

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010 3

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010 4

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010 10

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010 11

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010 14

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010 15

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010 16

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010 17
