Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom

1 Set
MOQ
1￥
harga
Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom
fitur Galeri Deskripsi Produk Penilaian & Ulasan Quote request suatu
fitur
Spesifikasi
Nama Produk: Sistem rectverter
Tegangan Keluaran AC: 230 VAC / 200 - 240 VAC
tegangan keluaran DC: 53,5 VDC / 43 - 58 VDC
Memasukan data: 185 - 275 VAC
Frekuensi: 47-53 & 57-63 Hz
Faktor daya: > 0,99 pada beban 50% atau lebih / < 3,5%
arus DC: 64 A / 90 A saat kelebihan beban (15 detik)
Pengendali: Pengontrol Smartpack2, Smartpack S & Compack
Modul Penyearah: 242100.100
Modul rectverter: 242100.102
Menyoroti:

4kw telecom power supply

,

230v DC standalone rectifier

,

telecom power system with integration
Informasi dasar
Tempat asal: Cina
Nama merek: ELTEK OR OEM
Nomor model: CTOR0201.001
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Karton
Menyediakan kemampuan: 500 set per bulan
Deskripsi Produk

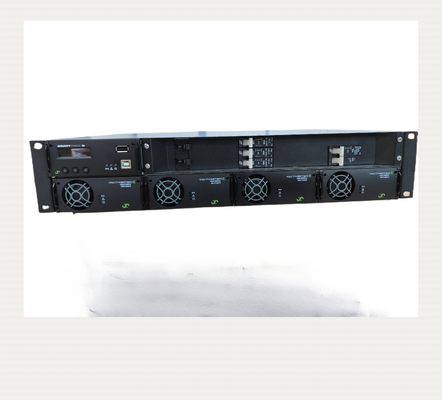

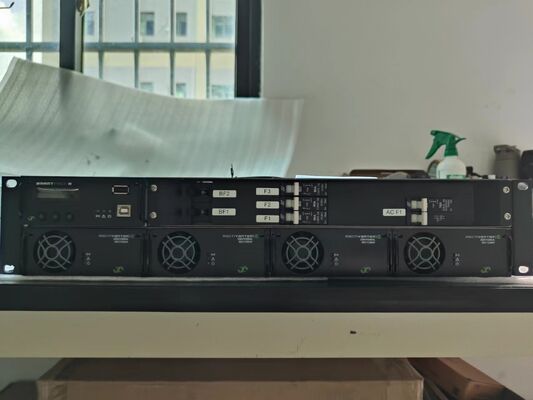

Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 0

The Rectiverter can operate either as an integrated module or an independent unit. It is ideal for scenarios requiring dual backup power: 48 VDC alongside 230/115 VAC.

When deployed as an integrated solution, it works seamlessly with Eltek DC power systems and shares the same controller as the 48 VDC setup. For standalone deployment, it can connect to any standard 48 VDC power supply.

The combined maximum output of AC and DC is 4 kW. Output ratings can be configured based on actual connected loads, with the AC side capped at 3 kVA.

Key Features:


230Vac input / output
Single input / output
48vdc input / output
4KW AC+DC output
max 3kva AC output
Max 2.4KW DC output
2 pole AC distribution
3 *IEC sockets on front
Bult in transfer technology
150% overload capacity

Product name  Rectiverter systems
Part No. CTOR0201.XXX


Parameters:


Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 1


Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 2


Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 3

Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 4Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 5Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 6


(1U Rectiverter avalialbe for your choose )


Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 7

Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 8Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 9Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 10

Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 11

Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 12

Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 13

Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 14


Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 15Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 16


Eltek 4kw 230v DC Power Supply System CTOR0201.001 Standalone Rectifier with Integration for Telecom 17
