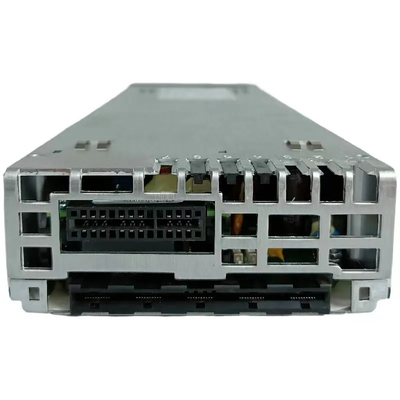

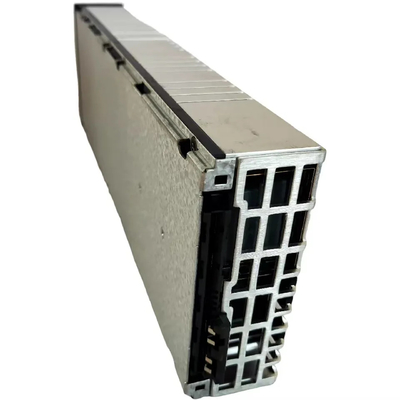

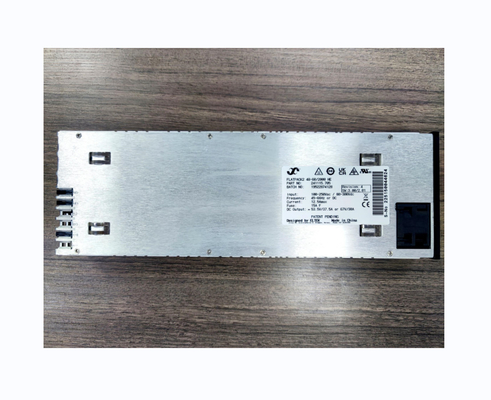

| Model 48-60/2000 HE |
| Nomor bagian 241115.705 |
| INPUT DATA |
| Tegangan (nominal) 185 - 275 VAC/ 185 - 275 VDC |
| Tegangan (operating range) 85 - 300 VAC/ 80 - 300 VDC |
| Current (maximum) @ nominal input, full load 11,6 ARMS |
| Frekuensi 45 - 66 Hz / 0 Hz |
| Power Factor > 0.99 pada 50% load atau lebih |
| THD < 5% pada 100% beban |
| Protection Fuse in L & N, Varistor, Shutdown when input voltage is out of operating range |
| Output data |
| Tegangan (default)1)53.5 VDC(67 V)DCdalam mode 60V) |
| Tegangan (jarak yang dapat disesuaikan)1)39.9 - 72 VDC |
| Power (maximum) @ nominal input 2000 W (@V)Di luar≥ 48VDC) |
| Power @ 85 VAC 750 W |
| Current (maximum) @ nominal input 41.6 A (@V)Di luar< 48VDC) |
| Hold up time, 1500W output power > 20ms; output voltage > 53,5 VDC(60V mode) |
| Current sharing (10 - 100% load) ±5% of maximum current from 10 to 100% load |
| Static Voltage regulation (10 - 100% load) ± 0,5% |
| Dynamic Voltage regulation ±5.0% untuk 10-80% or 80-10% load variation, regulation time < 50ms |
| Ripple & noise < 150 mVPP, 30 MHz bandwidth / < 2 mVRMSpsophometric |
| Protection Fuse, Short circuit proof, High temperature protection, Over voltage Shutdown (Menghilangkan tegangan tinggi) |
| Spesifikasi Lainnya |
| Efisiensi 96,2 % |
| Isolasi 3.0 kVAC- input ke output, 1,5 kVAC- input ke bumi, 500 VDC- output to earth |
|
Low / high input voltage shutdown, High / low temperature shutdown, Rectifier
Alarm: Red LED Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm, CAN bus failure
|
|
Rectifier in power de-rate mode, Remote output current limit activated, Input
Warnings: Yellow LED voltage out of range, flashing at overvoltage, Loss of CAN communication with
pengontrol
|
| Operasi normal: LED hijau |
| MTBF (Telcordia SR-332 Iss.I method III (a)) > 350 000 (@ Tlingkungan: 25 °C) |
| Operating temp. (5-95% RH n.cond. hum.) -40 sampai + 75°C [-40 sampai + 167°F] |
| Max output power de-rates above temp / to 45°C [113°F] / 1200W @ 75°C[167°F] |
| Storage temperature -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensi[WxHxD] / Berat 109 x 41.5 x 327 mm (4.25 x 1.69 x 13 ¢) / 1.950 kg (4.3 lbs) |
| Standar Desain |
| Keamanan listrik EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 60950-1:2013 UL 60950-1:2011 |
|
EMC EN 61000-6-1:2007, -6-2:2005, -6-3:2007 + A1:2011, -6-4:2007 + A1:2011,
IEC 61000-6-5: 2015, ETSI EN 300 386:2.1.1
|
| Pengelolaan limbah cair |
|
ETSI EN 300 019: 2-1 (Kelas 1.2) & 2-2 (Kelas 2.3)
Pengelolaan limbah dari bahan bakar yang digunakan untuk pembuatan bahan bakar
Kondisi operasi normal sesuai dengan IEC 62040-5-3:2016 klausa 4.2. lainnya
Kondisi operasi sesuai dengan IEC 62040-5-3:2016 klausa 4.3, harus diberitahu
|
|
1) OVS setting from controller select mode: OVS≤59.5V = 48V mode (42-58V), 59.5V
2) Hanya valid untuk bagian nomor 241115.705M
|
